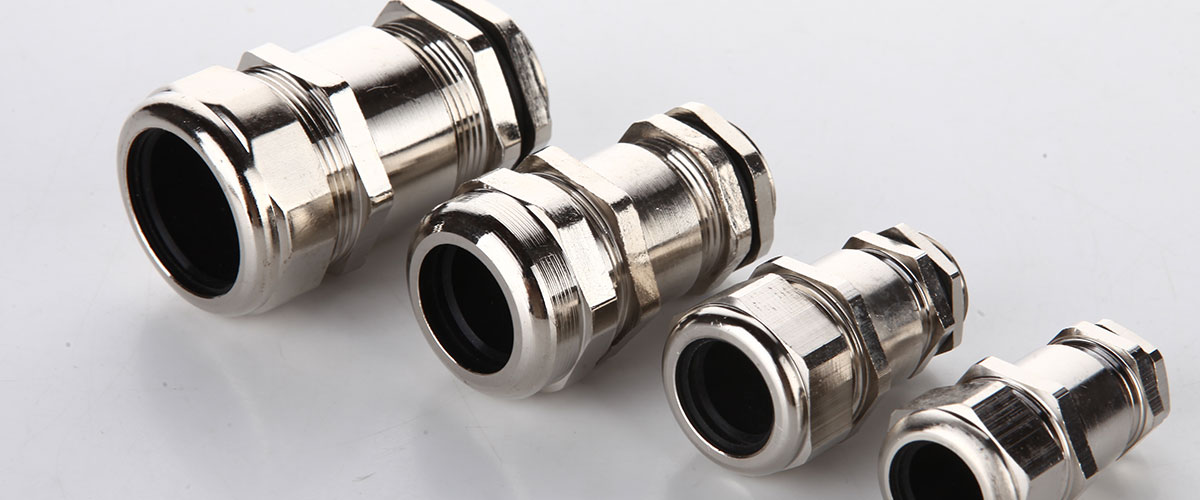

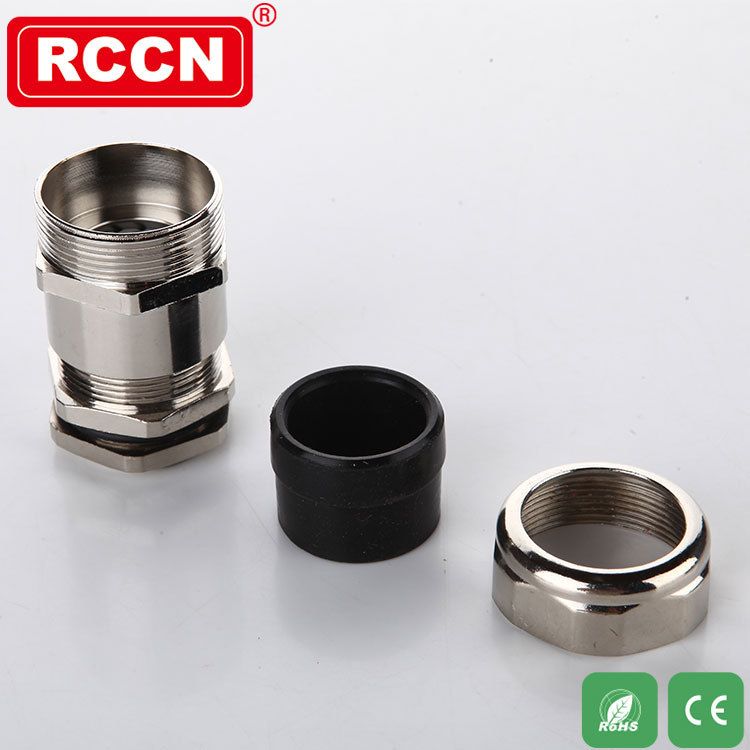

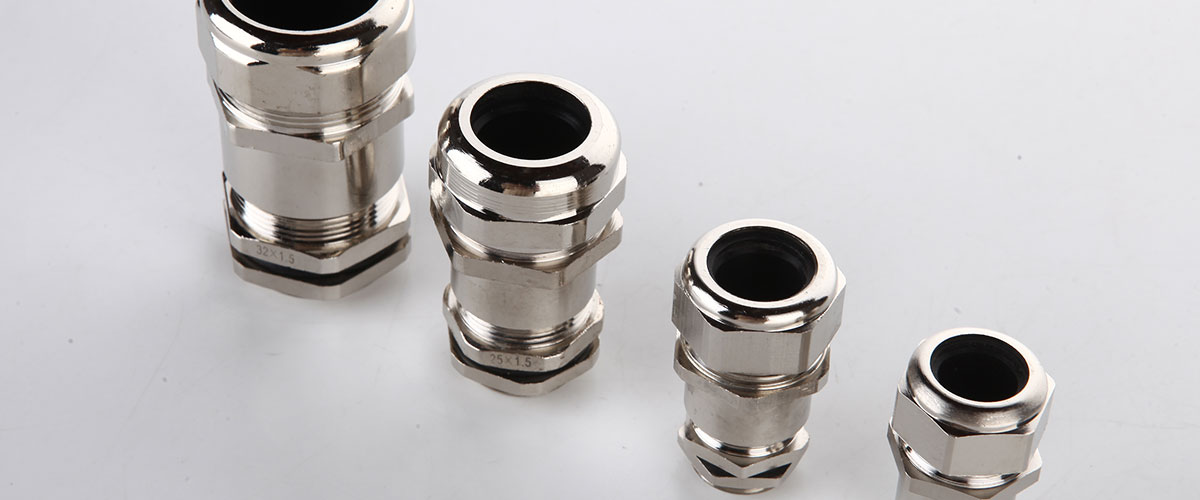

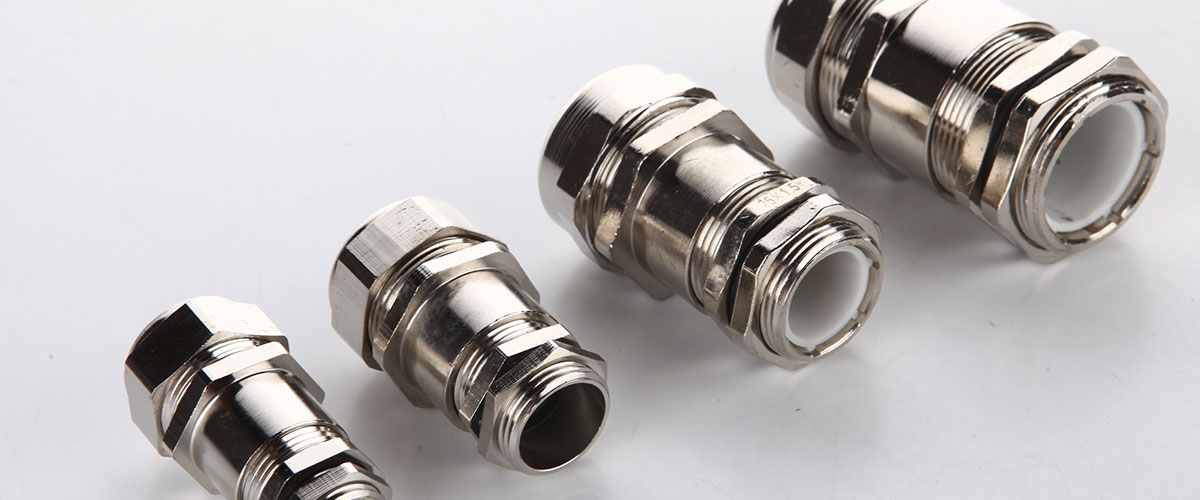

Metal su geçirmez kablo rakoru

BGX

Konu: Metrik
Malzeme: A.C.F, nikel ile kaplanmış çinko metalden imal edilmiştir.
kauçuktan yapılmış
Sertifikalar: CE, RoHS.
Hızı koruyun: süngü kapsamında, O halkalı usd, vida somunu aşağı, IP68'e kadar olabilir

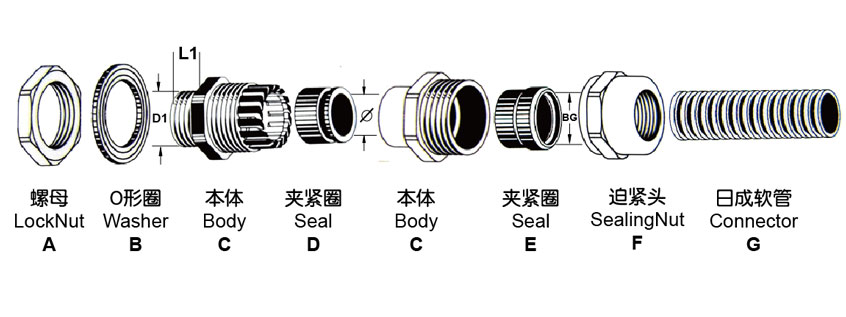

Ürün karakteristikleri: F ve kısmı ile kullanılan D ve E bölümlerinin özel tasarımı tasarruf edebilir
zaman, kablo sızdırmazlık, iyi yeniden gerilme, su geçirmez, ashproof, yeniden tuzlu büyük yayılması,
asit, alkali, alkol, yağ, gres gibi doymamış

Eşya yok . Item No .	Thread	Cable Range Φ	Suit to RCCN conduit item no BG	Suit to RCCN conduit item no BG	Thread O.D. D1	Thread Length L1
Metric thread BGX-M
BGX-M12(BG07)	M12*1.5	3-6	BG-07	10.0	12	6
BGX-M12(BG10)	M12*1.5	3-6	BG-10	13.0	12	6
BGX-M16(BG07)	M16*1.5	4-8	BG-07	10.0	16	7
BGX-M16(BG10)	M16*1.5	4-8	BG-10	13.0	16	7
BGX-M16(BG12)	M18*1.5	4-8	BG-12	15.8	16	7
BGX-M18(BG12)	M18*1.5	6-10	BG-12	15.8	18	8
BGX-M18(BG15)	M18*1.5	6-10	BG-15	18.5	18	8
BGX-M20(BG12)	M20*1.5	8-12	BG-12	15.8	20	8
BGX-M20(BG15)	M20*1.5	8-12	BG-15	18.5	20	8
BGX-M20(BG17)	M20*1.5	8-12	BG-17	21.2	20	8
BGX-M22(BG17)	M22*1.5	10-14	BG-17	21.2	22	9
BGX-M24(BG17)	M24*1.5	10-14	BG-17	21.2	24	10
BGX-M25(BG17)	M25*1.5	10-14	BG-17	21.2	25	10
BGX-M25(BG23)	M25*1.5	10-14	BG-23	28.5	25	10
BGX-M27(BG23)	M27*1.5	13-18	BG-23	28.5	27	11
BGX-M30(BG23)	M30*1.5	13-18	BG-23	28.5	30	11
BGX-M30(BG29)	M30*1.5	13-18	BG-29	34.5	30	11
BGX-M32(BG23)	M32*1.5	15-22	BG-23	28.5	32	11
BGX-M32(BG29)	M32*1.5	15-22	BG-29	34.5	32	11
BGX-M33(BG23)	M33*1.5	15-22	BG-23	28.5	33	11
BGX-M33(BG29)	M33*1.5	15-22	BG-29	34.5	33	11
BGX-M36(BG29)	M36*1.5	18-25	BG-29	34.5	36	11
BGX-M40(BG29)	M40*1.5	18-25	BG-29	34.5	40	12
BGX-M40(BG36)	M40*1.5	18-25	BG-36	42.5	40	12
BGX-M50(BG36)	M50*1.5	26-32	BG-36	42.5	50	13
BGX-M50(BG48)	M50*1.5	26-32	BG-48	54.5	50	13
BGX-M63(BG48)	M63*1.5	37-44	BG-48	54.5	63	14

Item No .	Thread	Cable Range Φ	Suit to RCCN conduit item no BG	Suit to RCCN conduit item no BG	Thread O.D. D1	Thread Length L1
Germany thread BGX-P
BGX-PG7(BG07)	PG-7	3-6	BG-07	10.0	12.5	6
BGX-PG9(BG10)	PG-9	4-8	BG-10	10.0	15.2	7
BGX-PG11(BG12)	PG-11	6-10	BG-12	15.8	18.6	8
BGX-PG13.5(BG12)	PG-13.5	8-12	BG-12	15.8	20.4	8
BGX-PG13.5(BG15)	PG-13.5	8-12	BG-15	18.5	20.4	8
BGX-PG13.5(BG17)	PG-13.5	8-12	BG-17	21.2	20.4	8
BGX-PG16(BG17)	PG-16	10-14	BG-17	21.2	22.5	9
BGX-PG21(BG23)	PG-21	13-18	BG-23	28.5	28.3	11
BGX-PG29(BG29)	PG-29	18-25	BG-29	34.5	37.0	11
BGX-PG36(BG36)	PG-36	26-32	BG-36	42.5	47.0	13
BGX-PG48(BG48)	PG-48	37-44	BG-48	54.5	59.3	14
Tube thread BGX-G
BGX-G1/4(BG07)	G1/4''	3-6	BG-07	10.0	13.2	6
BGX-G3/8(BG10)	G3/8''	4-8	BG-10	13.0	16.5	7
BGX-G1/2(BG12)	G1/2''	8-12	BG-12	15.8	21.3	8
BGX-G1/2(BG15)	G1/2''	8-12	BG-15	18.5	21.3	8
BGX-G1/2(BG17)	G1/2''	8-12	BG-17	21.2	21.3	8
BGX-G3/4(BG17)	G3/4''	13-18	BG-17	21.2	26.6	11
BGX-G1(BG23)	G1''	15-22	BG-23	28.5	33.4	11
BGX-G1 1/4(BG29)	G1 1/4''	22-28	BG-29	34.5	42.1	12
BGX-G1 1/2(BG36)	G1 1/2''	26-32	BG-36	42.5	47.8	13
BGX-G2(BG48)	G2''	37-44	BG-48	54.5	59.6	14
America thread BGX-N
BGX-NPT3/8(BG10)	NPT3/8''	4-8	BG-10	10.0	16.5	7
BGX-NPT1/2(BG12)	NPT1/2''	8-12	BG-12	15.8	21.3	8
BGX-NPT1/2(BG15)	NPT1/2''	8-12	BG-15	18.5	21.3	8
BGX-NPT1/2(BG17)	NPT1/2''	8-12	BG-17	21.2	21.3	8
BGX-NPT3/4(BG17)	NPT3/4''	13-18	BG-17	21.2	26.6	11
BGX-NPT3/4(BG23)	NPT3/4''	13-18	BG-23	28.5	26.6	11
BGX-NPT1(BG29)	NPT1''	15-22	BG-29	34.5	33.4	11
